Flexible Reach For Precise Load Positioning

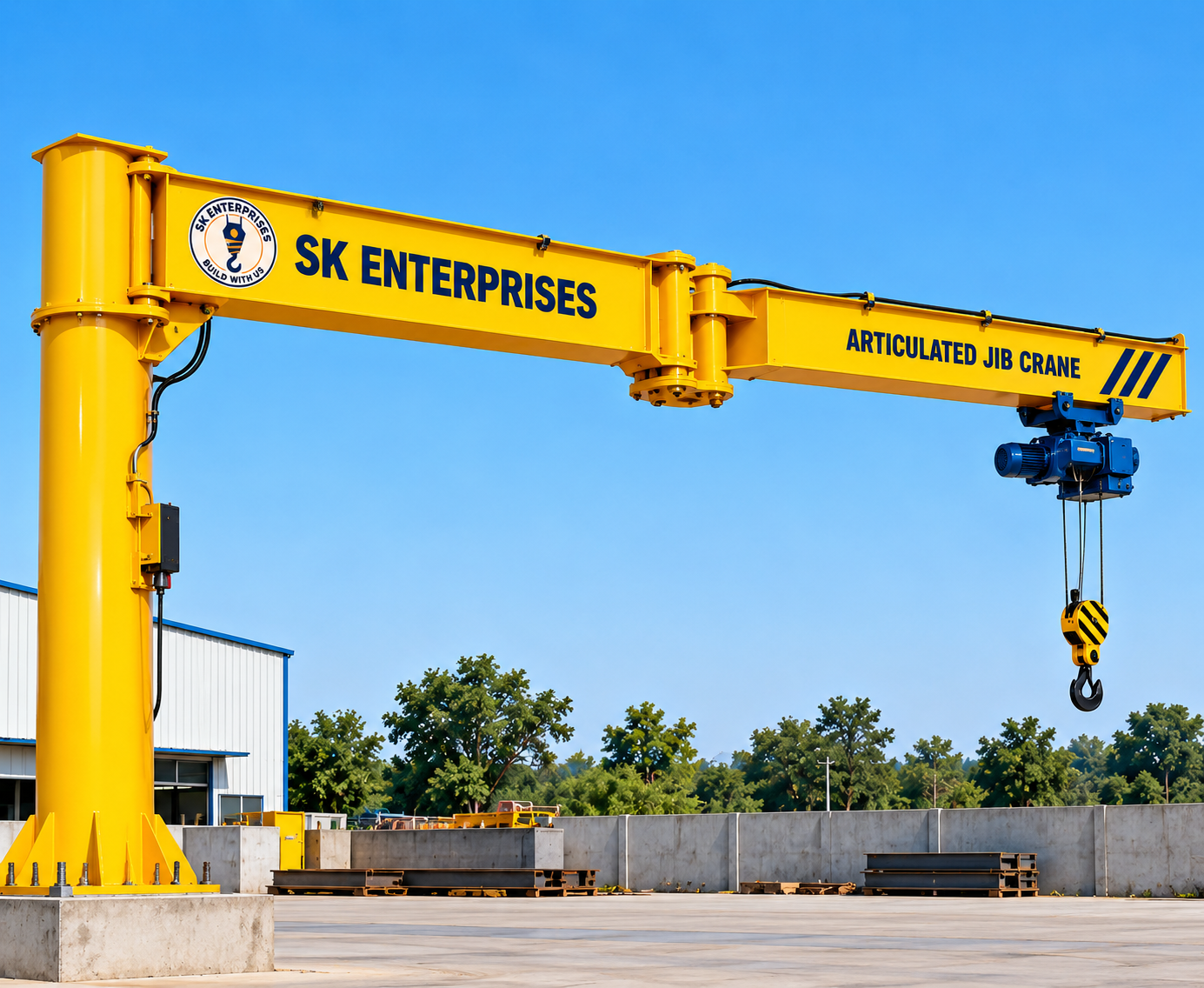

Articulated Jib Cranes are designed for applications where precise and flexible load positioning is required around machinery, workstations and confined operating areas.
The articulated boom arrangement provides additional flexibility compared with conventional fixed-boom jib cranes, allowing the lifting arm to maneuver around obstacles and reach difficult working positions.
The crane can be configured according to lifting capacity, reach, lifting height, mounting arrangement, operating radius and the specific requirements of the material handling application.
Why Choose Articulated Jib Crane?
A versatile lifting solution engineered for controlled movement and accurate load handling in restricted and complex work areas.
Articulated Boom
Multi-section boom movement provides greater flexibility for positioning loads.
Precise Positioning
Designed for controlled placement of loads at specific workstation locations.
Extended Maneuverability
Flexible arm movement helps access areas that may be difficult for conventional jib cranes.
Custom Configuration
Reach, capacity and mounting arrangement can be adapted to application requirements.
Key Features
Technical Specifications
| Specification | Details |
|---|---|
| Crane Type | Articulated Jib Crane |
| Capacity | 250 Kg to 2 Ton |
| Boom Length | 2 Meter to 8 Meter |
| Lift Height | 2 Meter to 8 Meter |
| Rotation | Up to 360° / As Per Requirement |
| Operation | Pendant / Radio Remote |
| Hoist Type | Electric Wire Rope Hoist / Chain Hoist |
